Offering LS (2022-2025)

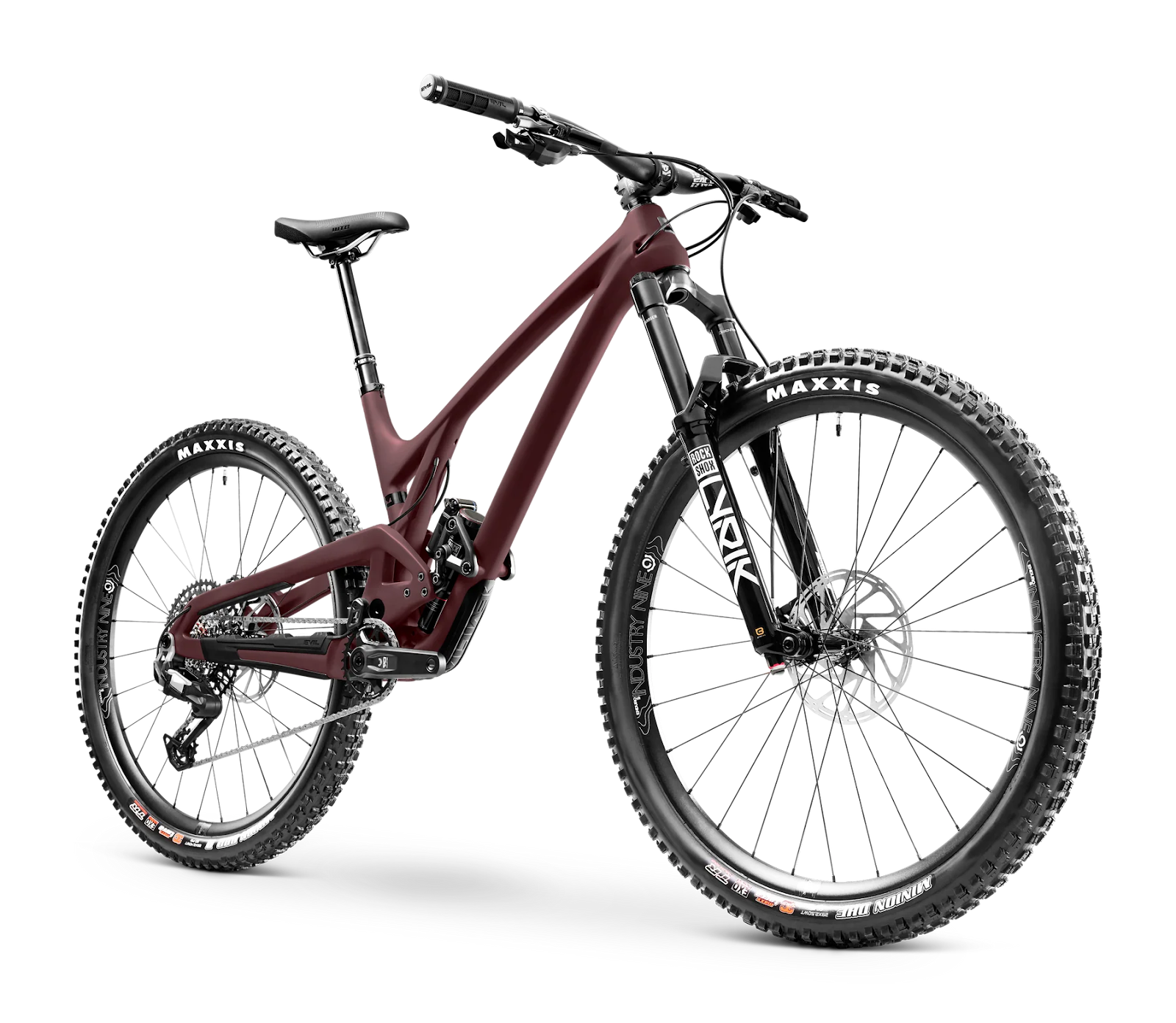

Available in : Absinthe / Reigning Blood

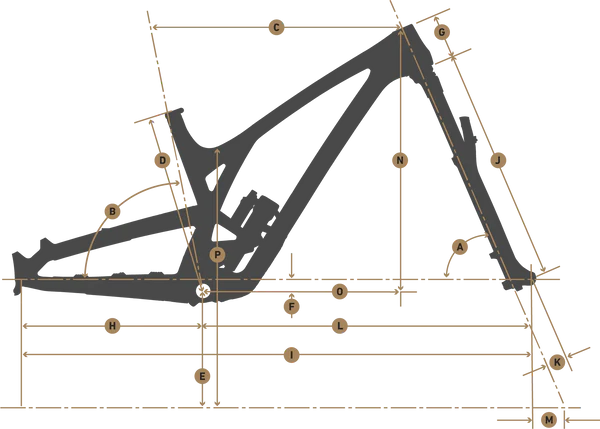

Geometry
| Geometry (w/ 150mm fork) | Small | Medium | Large | X-Large |
|---|---|---|---|---|
| A - Head Tube Angle - LOW | 66.4° | 66.4° | 66.4° | 66.4° |
| A - Head Tube Angle – X-LOW | 65.8° | 65.8° | 65.8° | 65.8° |
| B - Seat Tube Angle - LOW | 77° | 77° | 77° | 77° |
| B - Seat Tube Angle – X-LOW | 76° | 76° | 76° | 76° |
| C - Virtual Top Tube Length - LOW | 594mm | 23.38" | 617mm | 24.28" | 639mm | 25.15" | 661mm | 26.03" |
| C - Virtual Top Tube Length – X-LOW | 596mm | 23.46" | 619mm | 24.37" | 641mm | 25.24" | 663mm | 26.10" |
| D - Seat Tube Length | 380mm | 14.96" | 431mm | 16.96" | 460mm | 18.11" | 495mm | 19.48" |
| E - Bottom Bracket Height - LOW | 347mm | 13.66" | 347mm | 13.66" | 347mm | 13.66" | 347mm | 13.66" |
| E - Bottom Bracket Height – X-LOW | 339mm | 13.33" | 339mm | 13.33" | 339mm | 13.33" | 339mm | 13.33" |
| F - Bottom Bracket Drop - LOW | 26mm | 1.02" | 26mm | 1.02" | 26mm | 1.02" | 26mm | 1.02" |
| F - Bottom Bracket Drop – X-LOW | 34mm | 1.34" | 334mm | 1.34" | 34mm | 1.34" | 34mm | 1.34" |
| G - Head Tube Length | 95mm | 3.74" | 105mm | 4.13" | 115mm | 4.52" | 125mm | 4.92" |
| H - Chain Stay Length - LOW | 430mm | 16.93" | 430mm | 16.93" | 430mm | 16.93" | 430mm | 16.93" |
| H - Chain Stay Length – X-LOW | 432mm | 17.01" | 432mm | 17.01" | 432mm | 17.01" | 432mm | 17.01" |
| I - Wheel Base - LOW | 1180mm | 46.45" | 1205mm | 47.44" | 1231mm | 48.46" | 1256mm | 49.44" |
| I - Wheel Base – X-LOW | 1182mm | 46.54" | 1207mm | 47.52" | 1233mm | 48.54" | 1258mm | 49.53" |
| J - Axle to Crown | 561mm | 22.08" | 561mm | 22.08" | 561mm | 22.08" | 561mm | 22.08" |
| K - Offset | 42mm | 1.65" | 42mm | 1.65" | 42mm | 1.65" | 42mm | 1.65" |
| L - Front to Center - LOW | 750mm | 29.52" | 775mm | 30.51" | 801mm | 31.53" | 826mm | 32.51" |
| L - Front to Center – X-LOW | 750mm | 29.52 | 775mm | 30.51" | 801mm | 31.53" | 826mm | 32.51" |
| M - Trail - LOW | 115mm | 4.52" | 115mm | 4.52" | 115mm | 4.52" | 115mm | 4.52" |
| M -Trail – X-LOW | 116mm | 4.56" | 116mm | 4.56" | 116mm | 4.56" | 116mm | 4.56" |
| N - Stack - LOW | 613mm | 24.13" | 622mm | 24.5" | 632mm | 24.86" | 641mm | 25.22" |
| N - Stack – X-LOW | 618mm | 24.33" | 627mm | 24.69" | 637mm | 25.08" | 646mm | 25.43" |
| O - Reach - LOW | 448mm | 17.36" | 469mm | 18.47" | 491mm | 19.32" | 512mm | 20.17" |
| O - Reach – X-LOW | 442mm | 17.40" | 463mm | 18.23" | 485mm | 19.09" | 506mm | 19.92" |
| P - Standover - LOW | 672mm | 26.45" | 684mm | 26.92" | 695mm | 27.38" | 706mm | 27.8" |
| P - Standover – X-LOW | 664mm | 26.14" | 676mm | 26.61" | 687mm | 27.05" | 698mm | 27.48" |
Fit & Sizing
| COMPONENT SIZING | SMALL | MEDIUM | LARGE | X-LARGE |
| Stem Length | 35mm | 35mm | 35mm | 35mm |
| Stem Rise | 0° | 0° | 0° | 0° |
| Headset Spacers | 15mm | 15mm | 15mm | 15mm |
| Handlebar Rise | 35mm | 35mm | 35mm | 35mm |
| Handlebar Width | 780mm | 800mm | 800mmm | 810mm |
| Crank Length | 170mm | 170mm | 170mm | 170mm |
| Frame Sizing | 5'3" - 5'8" | 5'6" - 6'0" | 5'10" - 6'4" | 6'2" - 6'4+ |
Spec Sheet
| Available Sizes | Small, Medium, Large, X-Large |
| Available Colors | Absinthe, Reigning Blood |
| Wheel Travel | 141mm |
| Rear Shock | Rockshox Super Deluxe Ultimate, Trunnion 185x55, XL1S0 R55C26 HB X6TS C2 |
| Shock Hardware | Trunnion Upper, 20x8mm Lower |
| Fork Axle to Crown | 561mm ( Rockshox Lyrik Ultimate 150mm ) |
| Fork Offset | 44mm |
| Headtube | Tapered 1 1/8" - 1 1/2" |
| Headset | Cane Creek 40 ZS44/28.6/H8 ZS62/40 |
| Seatpost Diameter | 30.9.mm |
| Seatclamp Diameter | 34.9mm |
| Rear Wheel Diameter | 29" |
| Maximum Rear Tire Size | 29" x 2.6" (Varies By Brand) |
| Bottom Bracket Shell | BSA 73mm (Threaded) |
| Chainline | 55mm or 56.5mm |
| Chainguide Mount | Evil Proprietary (Upper), ISCG05 (Lower) |
| Maximum Chainring Size | 36T Round, 34T Oval |
| Minimum Chainring Size | 30T Round, 32T Oval |
| Rear Derailleur Hanger | SRAM Universal Derailleur Hanger (UDH) |
| Rear Wheel Spacing | 157mm x 12mm |
| Rear Brake Mount Type | Post Mount 180mm (PM180) |
| Maximum Rear Rotor Size | 203mm |

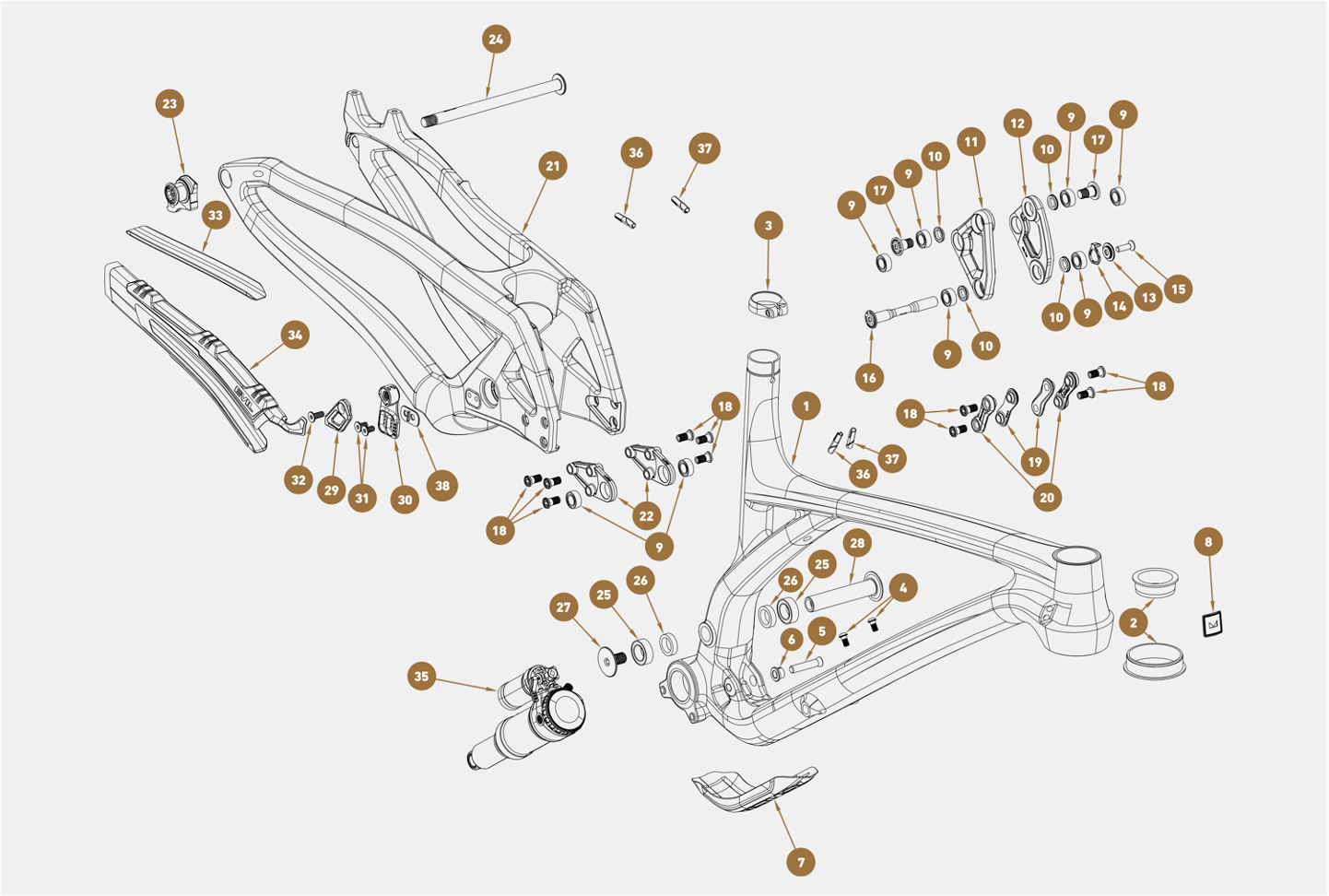

Exploded View
Evil Bikes recommends using only a torque wrench when assembling any part of your bike. Below is a list of specific items and their respective torque values.
Torque specifications are laser-etched on each of the linkage bolts for quick reference. It’s important to note that over-tightening or under-tightening bolts may result in damage to the bike.
| ITEM # | PART # | DESCRIPTION | QUANTITY | TORQUE | LUBRICATION | ITEM # | PART # | DESCRIPTION | QUANTITY | TORQUE | LUBRICATION |
| 1 | ELBF-10-B-M | FRONT TRIANGLE | 1 | - | - | 27 | 50405_R2.0 | MAIN PIVOT SCREW | 1 | 165 IN-LB (18.6 NM) | LOCTITE |
| 2 | CANE11 | CANE CREEK 40 HEADSET | 1 | - | GREASE | 28 | 60104 | MAIN PIVOT AXLE | 1 | - | GREASE |
| 3 | JD-SC66A-5 | SEAT CLAMP 30.9 | 1 | 44 IN-LB (5 NM) | - | 29 | CHAN09 | CHAIN GUIDE OUTER PLATE | 1 | - | - |
| 4 | M5XP02 | BOTTLE CAGE BOLT | 2 | 8.8 IN-LB (1 NM) | GREASE | 30 | CHAN19 | CHAIN GUIDE INNER PLATE - UDH | 1 | - | - |
| 5 | 50402_B | LOWER SHOCK BOLT | 1 | 85 IN-LB (9.6 NM) | GREASE | 31 | M6X101 | M6x12 LOWER CHAIN GUIDE BOLT | 2 | 44 IN-LB (5 NM) | - |
| 6 | 50403 | SHOCK BOLT EXPANDER | 1 | - | - | 32 | M6X102 | M6x16 UPPER CHAIN GUIDE BOLT | 1 | 44 IN-LB (5 NM) | - |
| 7 | DTPR01 | DOWNTUBE PROTECTION | 1 | - | - | 33 | SSPR01 | SEAT STAY PROTECTION | 1 | - | - |
| 8 | EVLH01 | HEAD TUBE BADGE | 1 | - | - | 34 | FFER19 | CHAINSTAY RUBBER | 1 | - | - |
| 9 | 11197V2RSMNK-KRBOLU | BEARING 11x19x7 | 8 | - | - | 35 | 00.4118.295.219 | REAR SHOCK 185x55 | 1 | - | - |
| 10 | CAPT01 | DELTA LINK SPACER | 4 | - | - | 36 | CABL06 | CABLE CLIP - 4mm | 2 | - | - |
| 11 | DELT25 | DELTA LINK - DRIVE SIDE | 1 | - | - | 37 | CABL07 | CABLE CLIP - 5mm | 2 | - | - |
| 12 | DELT26 | DELTA LINK - NON-DRIVE SIDE | 1 | - | - | 38 | CHAN20 | CHAIN GUIDE SPACER - 56.5MM | 1 | - | - |
| 13 | 50309 | SAG INDICATOR HOLDER | 1 | - | - | ||||||
| 14 | 50310B | SAG INDICATOR | 1 | - | - | ||||||
| 15 | 50323 | DELTA PIVOT SCREW | 1 | 65 IN-LB (7.4 NM) | LOCTITE | ||||||
| 16 | 50408 | DELTA PIVOT AXLE | 1 | 8.8 IN-LB (1 NM) | GREASE | ||||||
| 17 | 50603 | UPPER SHOCK BOLT TRUNNION | 2 | 65 IN-LB (7.4 NM) | LOCTITE | ||||||
| 18 | 50322 | BONE LINK BOLT | 10 | 65 IN-LB (7.4 NM) | GREASE | ||||||
| 19 | BNEL10 | BONE LINK - INNER | 2 | - | - | ||||||
| 20 | BNEL11 | BONE LINK - OUTER | 2 | - | - | ||||||
| 21 | ELBRT-10-B | REAR TRIANGLE | 1 | - | - | ||||||
| 22 | 60111 | FLIP CHIP | 2 | - | - | ||||||
| 23 | 00.7918.089.000 | SRAM UDH HANGER | 1 | 225 IN-LB (25 NM) | - | ||||||
| 24 | AXLE05 | REAR AXLE - 157 UDH | 1 | 165 IN-LB (18.6 NM) | GREASE | ||||||
| 25 | 17289V2RSMNK-KR-BOLU | MAIN PIVOT BEARING 17x28x9 | 2 | - | - | ||||||
| 26 | STRA01 | MAIN PIVOT SPACER | 2 | - | - |
FAQ
How do I adjust my Flip Chips?
All Evil Bikes are shipped with the Flip Chips in the “Low” position. Follow the steps below to switch to “X-Low”.
- Remove two Bone Link Bolts from each side of the frame (total - 4)
- Remove the Bone Links on each side
- Remove three Flip Chip Bolts from each side of the frame (total - 6)
- Remove Flip Chips on each side
- Invert both Flip Chips 180° on a horizontal axis so that “X-Low” now faces up.
- Repeat the process above in reverse to re-install. Be sure to use a torque wrench upon assembly. These bolts are rated to 65 in/lbs & may fail beyond their specified torque rating.
What derailleur hanger does my bike utilize?
The Offering LS uses a SRAM Universal Derailleur Hanger (UDH). These can be purchased on our Parts page, or at just about any local bike shop.
Which bottom bracket (BB) standard does my bike utilize?
The Offering LS utilizes a threaded BSA 73mm bottom bracket. We recommend pairing bottom bracket & crankset brands to ensure seamless compatibility.
Boujee mixed-brand combination of bottom bracket & crankset? As much as we would like to help, we can’t possibly know the stats of every available configuration. Please reference manufacturer specs for your bottom bracket & crankset.
What crankset spacing does my bike require?
The Offering LS is designed to accommodate both 55mm & 56.5mm chainlines.
- For 55mm chainline:
- DUB Wide crank spindle
- 7.5mm driveside spindle spacer
- 3mm non-driveside spindle spacer
- 3mm offset chainring
- For 56.5mm chainline:
- DUB SB+ crank spindle
- 9mm driveside spindle spacer
- 4.5mm non-driveside spindle spacer
- 3mm offset chainring
- Contact info@evil-bikes.com to acquire 1.5mm chainguide spacer required to accept 56.5mm chainline
What size chainrings can I use?
Round: 30-36t / Oval: 32t-34t
Will my bike accept 2x drivetrain?
No. The Offering LS is designed specifically around a 1x drivetrain.
Will my bike accept an aftermarket chain guide?
Yes. The Offering LS has lower ISCG05 tabs to accommodate aftermarket lower chain guides and bash guards.
What is my bike's rear axle spacing?
The Offering LS utilizes SuperBoost (12x157mm) rear spacing.
What are my rear axle specifications?
- Length: 180mm
- Diameter: 12mm
- Thread Pitch: M12x1.0
What size wheels and tires fit my bike?
The Offering LS is designed to accommodate 29" wheels with up to 2.6" tires. Front tire clearance is dependent on your fork manufacturer’s specifications, although most suitable forks will accommodate that same 29x2.6” tire
What seat post diameter does my bike utilize?
The Offering LS requires a 30.9mm seat post.
What seat post clamp diameter does my bike utilize?
The Offering LS requires a 34.9mm clamp diameter.
What is my frame’s maximum seatpost insertion depth?
Maximum insertion depths are as follows:
| Small | Medium | Large | X-Large |
| 210mm | 250mm | 260mm | 285mm |
What is the maximum dropper length I can run?
This answer depends on a number of variables & requires some simple math.
First, with your dropper extended, saddle in the pedaling position, measure the distance between your bottom bracket center & the center of the saddle rails. We’ll call this measurement “X”.
Next, a bit of simple math:
To determine “Y”, you’ll need to deduct your frame’s maximum insertion depth from it’s seat tube length, then add the desired dropper post’s total length.
Y = (Seat Tube Length) - (Maximum Insertion Depth) + (Dropper Post Total Length).
X = Distance from Bottom Bracket Center to Seat Rail Center.
If X < Y, the dropper in question will not work.
If X ≥ Y, the dropper in question will work.
Translated to English: If the resulting value “Y” is greater than than your bottom bracket to seat rail measurement “X”, the dropper in question will not work for you. If the resulting value “Y” is less than your bottom bracket to seat rail measurement, the dropper in question will work for you. If the configuration you are interested in does not mathematically pan out, you will need to investigate droppers with shorter total lengths.
What type of brake mount does my bike have?
The Offering LS includes post-mount 180mm rear brake studs (PM180). Front will vary depending on the fork manufacturer’s specifications.
What is my maximum rear brake rotor size?
The Offering LS accepts up to a 203mm rotor.
What type of headset does my bike require?
The Offering LS requires a “Zero Stack” ZS44/ZS62 headset. Few alternatives exist. Consult info@evil-bikes.com if you are interested in a headset that you are unsure about.
What type of steerer tube does my bike utilize?
The Offering LS requires a fork with a tapered steerer tube (1 1/8" - 1 1/2").
What is my frame's minimum steerer tube length?
With zero headset spacers, assuming a stem stack height of 40mm, your Offering LS requires a steerer length of no less than:
| Small | Medium | Large | X-Large |
| 145mm | 155mm | 165mm | 175mm |
Fork manufacturers recommend not exceeding 30mm of spacers below the stem. The provided measurements account for 0mm additional stack height (no spacers between stem & dust cap), with a 40mm stack height stem.
What fork offset should I run?
The Offering LS is designed around a 44mm fork offset. Other fork offsets will function perfectly well, although it is important to consider the concept of “mechanical trail” & how that affects a bike’s steering character. In laymen’s terms, all other variables held constant, more offset results in a more agile steering character, whereas less offset results in a more stable steering character.
How much fork travel can my bike accommodate?
The Offering LS is designed around a 150mm fork, although it can accept up to 160mm without detrimentally affecting the bike’s geometry.
How much travel (suspension) does my bike have?
The Offering LS has 141mm of rear wheel travel. Recommended fork travel (front) is between 150 and 160mm.
What size shock does my frame utilize?
The Offering LS requires a 185x55mm Trunnion-mount shock.
Can I long-shock my bike?
No. Due to clearance constraints, the Offering is not capable of running a shock any longer than its specified 185x55.
What size shock mount hardware does my bike require?
The Offering LS utilizes 8x20mm lower shock mount hardware.
What approved shock options are available?
| Rockshox Superdeluxe Ultimate | RS SDLX ULT RCT185X55 DB0 LLC 380TS B2, SHAFT END: TRUNNION |BODY END: 8X20 |
| Fox Float X2 | 2021, FLOAT X2, F-S, K, 2pos-Adj, Trunnion, Evil Bikes, Offering, 185, 55, 0.3 Spacer x1CL001, JCR010, Rezi BV3, Neutral, Neutral Logo |
| Fox DPX2 | 2021, FLOAT DPX2, F-S, K,3pos-Adj, Trunnion, Evol LV, Evil Bikes, MY20 Offering, 18555, 0.2 Spacer, CM, DRL, ReziA F M, Neutral Logo |
| Push ElevenSix | Contact Push for custom tune |
It is important to note that each EVIL frame requires a specific damper tune. Often, a standard off-the-shelf tune will not capitalize on the inherent qualities of the DELTA linkage. Other options may exist. If you are interested in a damper that is not specified on this list, please consult our customer service team at info@evil-bikes.com.
What is the paint code on my bike?
| Reigning Blood | Pantone 4102 C |
| Absinthe | Pantone 418 C |
What is the warranty on my bike?
Limited Lifetime Warranty information can be found here - https://www.evil-bikes.com/pages/warranty-policy
